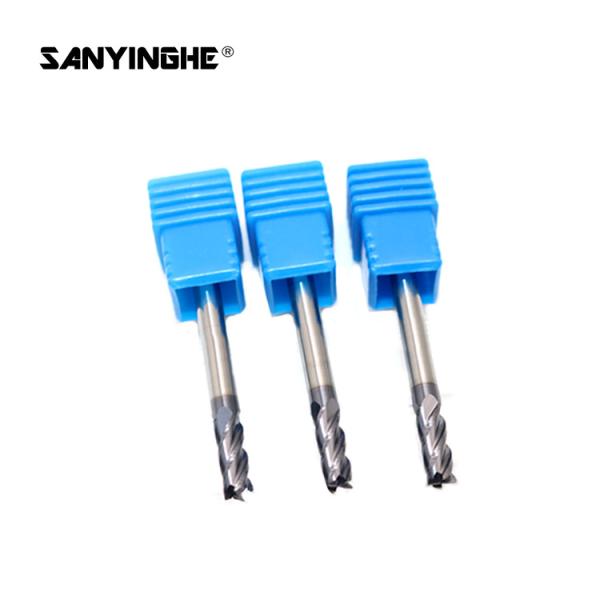

5mm End Mills CNC Machine Milling Cutter Carbide End Cutting Tool For Aluminum Copper Other Non-Ferrous Metal
Product Description:
1. Working pieces material: Aluminum alloy, copper alloy etc
2. Working material diameter: 1-20 mm
3. Working speed: 4000-40000 rpm
4. Attention:
1) Please select high rigidity and precision machine and tool holder.
2) It is possible to increase the rotating speed and feed speed correspondingly if the cutting depth is low.
3) Please use water-soluble cutting liquid.
4) Down milling is recommended in the case of side milling.
5) Make overhang of tool as short as possible in conditions of non-interference.
Specifications:
| Material | Tungsten Carbide |
| Flutes | 1/2/3/4 Flutes |
| Packing | 1pcs/ Plastic Box |
| Suitable | Aluminum, Copper and other material |
Note:
These sizes we have in stock, and the other sizes,we can produce for you based on your requirements. Any need, please free comments.
| Size | Cutting Diameter | Cutting Length | Handle | Total length | Flute |
| 1.0×3×4D×50L×3F | 1 | 3 | 4 | 50 | 3F |
| 1.5×4.5×4D×50L×3F | 1.5 | 4.5 | 4 | 50 | 3F |
| 2.0×6.0×4D×50L×3F | 2 | 6 | 4 | 50 | 3F |
| 2.5×7.5×4D×50L×3F | 2.5 | 7.5 | 4 | 50 | 3F |
| 3.0×9×4D×50L×3F | 3 | 9 | 4 | 50 | 3F |
| 3.0×9×3D×50L×3F | 3 | 9 | 3 | 50 | 3F |
| 3.0×12×3D×75L×3F | 3 | 12 | 3 | 75 | 3F |
| 3.0×15×3D×100L×3F | 3 | 15 | 3 | 100 | 3F |
| 3.5×10.5×4D×50L×3F | 3.5 | 10.5 | 4 | 50 | 3F |
| 4.0×12×4D×50L×3F | 4 | 12 | 4 | 50 | 3F |
| 4.0×16×4D×75L×3F | 4 | 16 | 4 | 75 | 3F |
| 4.0×20×4D×100L×3F | 4 | 20 | 4 | 100 | 3F |
| 5.0×15×5D×50L×3F | 5 | 15 | 5 | 50 | 3F |
| 5.0×20×5D×75L×3F | 5 | 20 | 5 | 75 | 3F |
| 5.0×25×5D×100L×3F | 5 | 25 | 5 | 100 | 3F |
| 5.0×15×6D×50L×3F | 5 | 15 | 6 | 50 | 3F |
| 6.0×18×6D×50L×3F | 6 | 18 | 6 | 50 | 3F |
| 6.0×24×6D×75L×3F | 6 | 24 | 6 | 75 | 3F |
| 6.0×30×6D×100L×3F | 6 | 30 | 6 | 100 | 3F |
| 8.0×24×8D×60L×3F | 8 | 24 | 8 | 60 | 3F |
| 8.0×30×8D×75L×3F | 8 | 30 | 8 | 75 | 3F |
| 8.0×35×8D×100L×3F | 8 | 35 | 8 | 100 | 3F |
| 9.0×27×10D×75L×3F | 9 | 27 | 10 | 75 | 3F |
| 10.0×30×10D×75L×3F | 10 | 30 | 10 | 75 | 3F |
| 10.0×40×10D×100L×3F | 10 | 40 | 10 | 100 | 3F |
| 12.0×35×12D×75L×3F | 12 | 35 | 12 | 75 | 3F |
| 12.0×45×12D×100L×3F | 12 | 45 | 12 | 100 | 3F |
| 14.0×45×14D×100L×3F | 14 | 45 | 14 | 100 | 3F |
| 16.0×45×16D×100L×3F | 16 | 45 | 16 | 100 | 3F |
| 18.0×45×18D×100L×3F | 18 | 45 | 18 | 100 | 3F |
| 20.0×45×20D×100L×3F | 20 | 45 | 20 | 100 | 3F |
| 6.0×45×6D×150L×3F | 6 | 45 | 6 | 150 | 3F |
| 8.0×50×8D×150L×3F | 8 | 50 | 8 | 150 | 3F |
| 10.0×60×10D×150L×3F | 10 | 60 | 10 | 150 | 3F |
| 12.0×60×12D×150L×3F | 12 | 60 | 12 | 150 | 3F |
| 14.0×70×14D×150L×3F | 14 | 45 | 14 | 150 | 3F |
| 16.0×75×16D×150L×3F | 16 | 45 | 16 | 150 | 3F |
| 18.0×75×18D×150L×3F | 18 | 45 | 18 | 150 | 3F |
| 20.0×75×20D×150L×3F | 20 | 45 | 20 | 150 | 3F |
| 25.0×45×25D×100L×3F | 25 | 45 | 25 | 100 | 3F |
FAQ
1. Who are we?
Sanyinghe is professional cutting tool supplier founded in 2014. Sanyinghe has a excellent teams in designing and manufacturing. Welcome to contact with us, we can meet all your requirement.
2. How can we guarantee quality?
We own optimized design concept advanced testing equipment and strict production process, so we can guarantee quality steadily.
3. What can you buy from us?
We can provide you tungsten carbide end mills, tungsten carbide indexable inserts, cermet (metal ceramic) indexable inserts, tungsten carbide or HSS drills, and milling cutter head, milling cutter arbor, cnc tool holder,and so on.
4. How is the packing?
All the packing will meet the strict export packing requirement, we surely understand how important the beautiful and firm packaging to the goods.
5. What is your terms of payment?
Generally by T/T, Paypal, Western Union. We support EXW, FOB, FCA, CFR, CIF, and DDP Terms.
